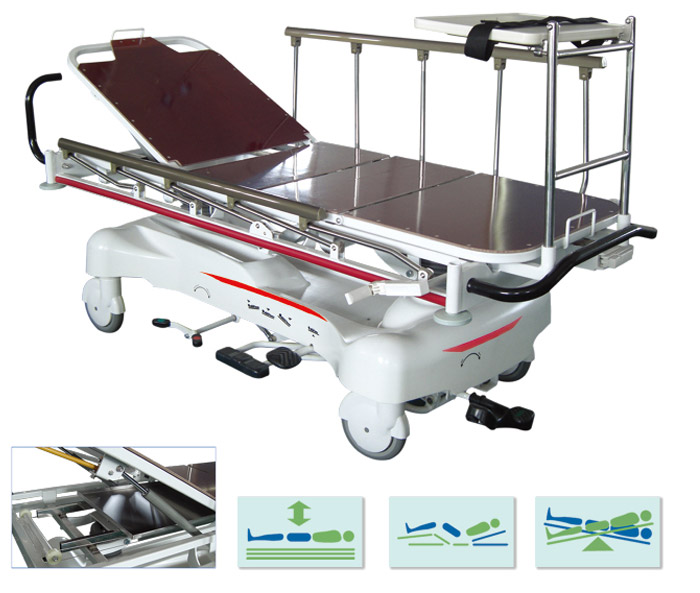

●SIZE FOR FULL CART
FULL LENGTH 212㎝
FULL WIDTH 80㎝
●BDE BASE HEIGHT RANGE
MAXIMUM HEIGHT 93㎝
MINIMUM HEIGHT 63㎝
●BASIC PARAMETER
BACK SECTION PANEL 0°～≥70°
LEG SECTION PANEL 0°～≥30°
TRENDELENBURG 0°～≥12°
ANTI-TRENDELENBURG 0°～≥12°
●LOADING CAPACITY
MAXIMUM STATIC SAFE LOAD 250Kg
MAXIMUM DYNAMIC SAFE LOAD 135Kg
● CONFIGRATION
DIAMETER OF CENTRALLY SILENT CASTOR φ20㎝
SHOCK PROOF SYSTEM FIFTH WHEEL
TWO SEPERATE HYDRAULIC PUMP
HYDRAULIC CONTROL PANEL
BACKRESTMAYX-
RAY(ELECTRIC PANEL MADE IN AMERICA)
CPR HANDLE
ALUMINUM ALLOY SIDE RAIL
MATTRESS (OPTIONAL)
IV POLE (OPTIONAL)
MONITOR BRACKET (OPTIONAL)
TOP COAT: ELECTROSTATIC POWDER COATING
BED FRAME: COLD-ROLLED STEEL TUBE
